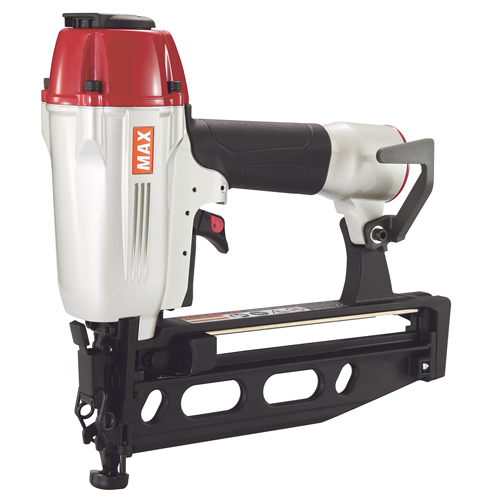

Bradnailer NF565A-16

Bradnailer NF565A-16 - Afbeelding 2

Bradnailer NF565A-16 - Afbeelding 3

Bradnailer NF565A-16 - Afbeelding 4

Bradnailer NF565A-16 - Afbeelding 5

Bradnailer NF565A-16

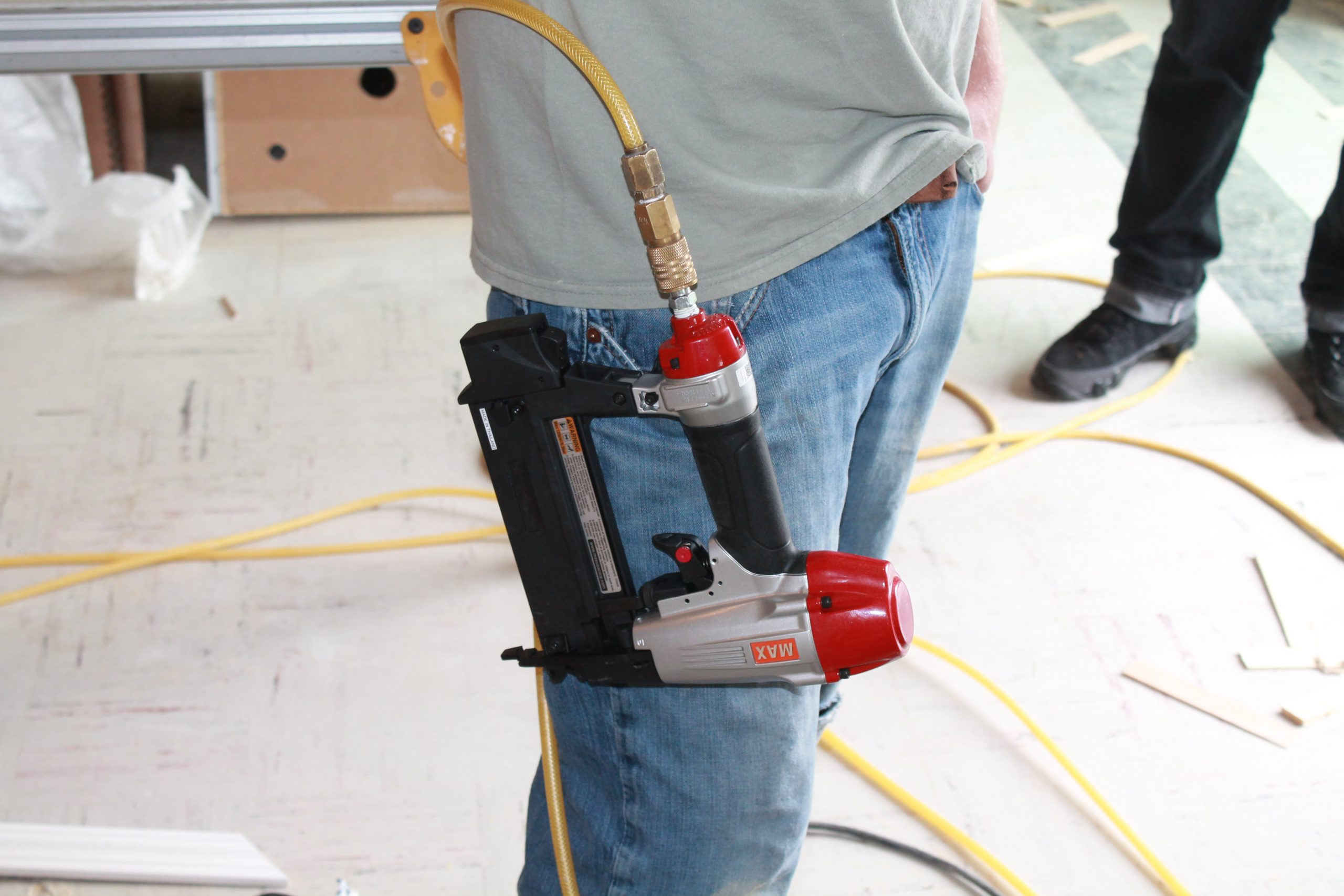

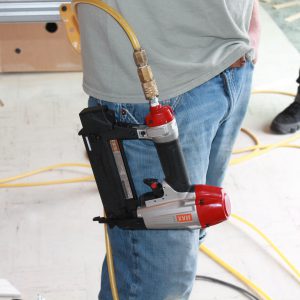

Deze bradnailer is onder andere uitgerust met een instelbare luchtuitlaat, diepte-instelling, riemhaak en een schakelaar voor enkelschot of repeterend schieten. Mocht u onverhoopt een vastloper hebben dan verwijdert u eenvoudig de vastgelopen brad met het open neus systeem

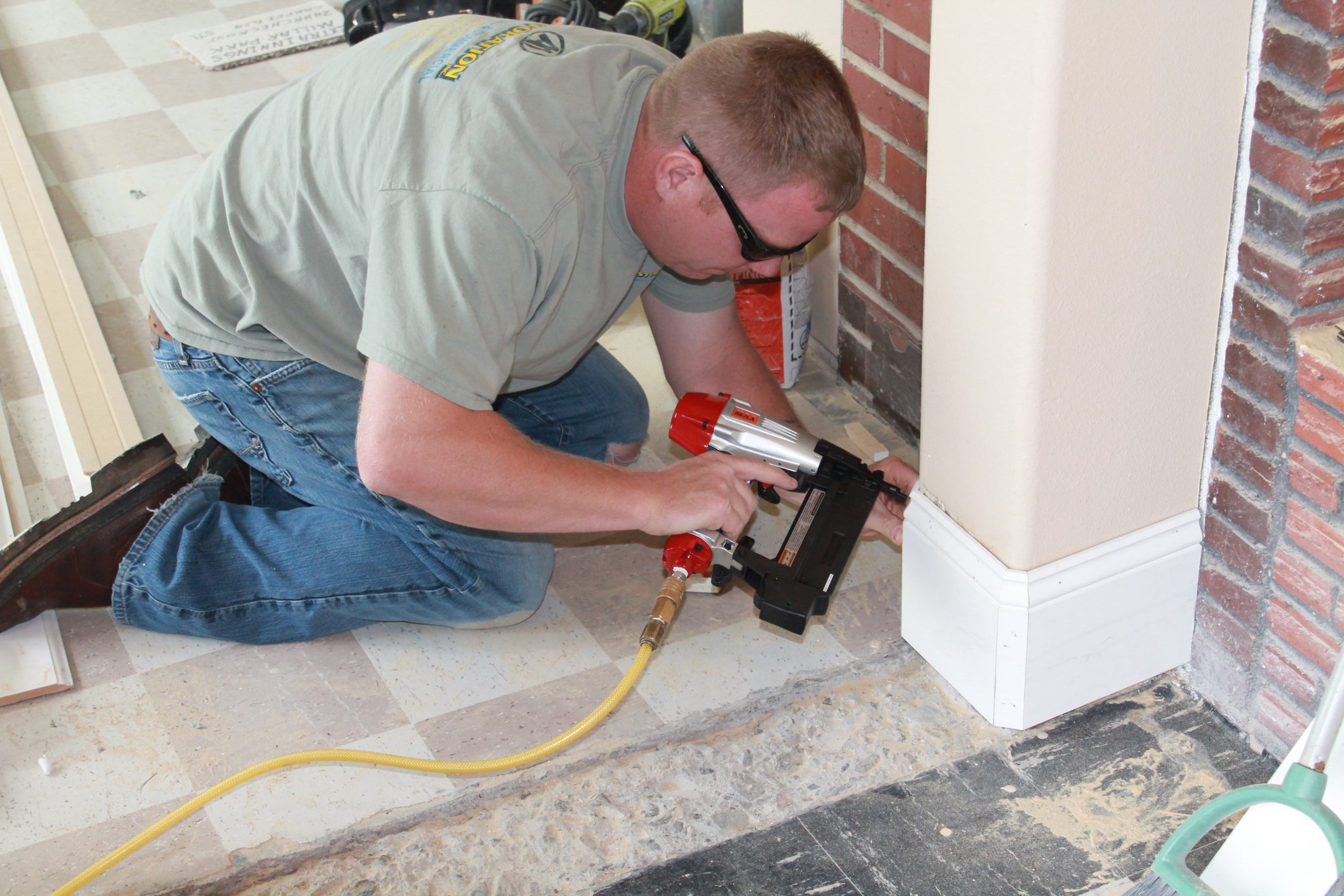

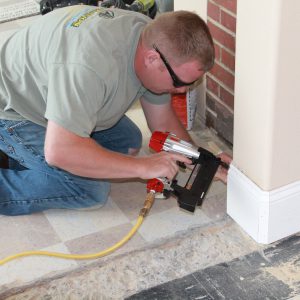

De belangrijkste werkzaamheden die u met deze tacker kunt realiseren zijn: Bevestigen van glaslatten, productie van meubels en het construeren van deur- en raamkozijnen.

Handleiding en Onderdelentekening

PDF Download onze handleiding hier

PDF Download de onderdelentekening hier

Vraag hier uw offerte aan

Categorieën: 8 Bar Tackers, Bradnailers

Technische specificaties

Technische specificaties

Artikelcode TTA94305
EAN 4902870802844
Gewicht 1,6 kg
Lengte 297 mm
Breedte 96 mm
Hoogte 285 mm
Magazijn laadcapaciteit 100 brads
Luchtverbruik per schot 0,68 liter bij 7 bar
Verbruiksartikel 16Ga brads
Min. – Max. lengte 32-65 mm
Werkdruk 5-7 bar
Geluidsniveau 96,2 dB

Beschrijving

De MAX NF565A-16 is een 16Ga Bradnailer die licht van gewicht is en brads verwerkt van 32 t/m 65mm!
